$9,699.00

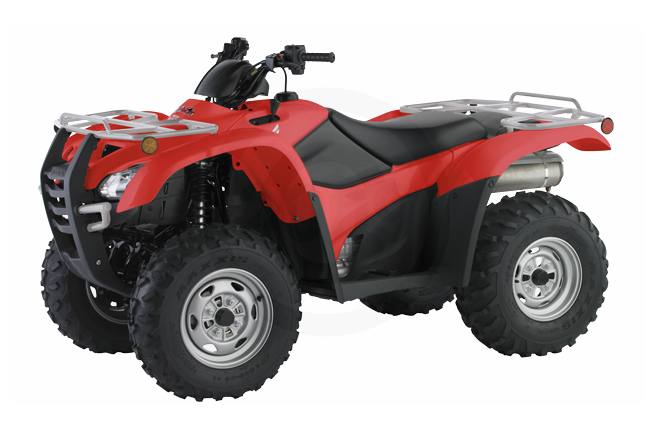

2009 Honda TRX420FG Canadian Trail Edition
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Red
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Sporty handling, plush trail comfort and a long list of high-tech features. If you're looking for a mid-size utility ATV that has it all, you'll want to take a long look at the new Honda TRX420FG Canadian Trail Edition. Its new independent rear suspension is specially designed to soak up bumps while maintaining the low centre of gravity, minimal body roll and overall stability that Honda ATVs are famous for. And we know recreational riders are really going to love the TRX420FG's innovative twin-clutch automatic transmission — it gives you the performance, durability, efficiency and direct feel of a manual transmission with the ease-of-use of an automatic.

  • Fully independent front and rear suspension incorporates special calibration developed from extensive testing on Canadian trails.
  • Innovative twin-clutch automatic transmission provides rapid, sporty shifting, plus true engine braking and excellent efficiency and durability.
  • Front and rear disc brakes feature new brake pads with improved wear resistance and enhanced feel.
  • Programmed fuel-injection provides the engine with the precise fuel-air mixture for optimum performance in all conditions.
  • Standard GPScape gives you the confidence to explore new trails.
Specifications
  • Engine Type: Liquid-cooled longitudinally mounted single-cylinder four-stroke
  • Displacement: 420 cc
  • Bore & Stroke: 86.5 mm x 71.5 mm
  • Valve Train: OHV, 2 valves
  • Fuel Delivery: PGM-FI fuel-injection
  • Transmission: Fully automatic five-speed with selectable ESP and reverse
  • Final Drive: 2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential
  • Front Suspension: Independent double-wishbone with hydraulic shocks; 160 mm (6.3 inches) travel
  • Rear Suspension: Independent double-wishbone with hydraulic shocks; 160 mm (6.3 in.) travel
  • Tires: 24x8 - 12 front; 24x10 - 11 rear
  • Brakes: Front dual hydraulic discs; rear single hydraulic disc
  • Length: 2,055 mm (80.9 inches)
  • Width: 1,171 mm (46.1 inches)
  • Ground Clearance: 231 mm (9.1 inches)
  • Seat Height: 823 mm (32.4 inches)
  • Wheelbase: 1,255 mm (49.4 inches)
  • Curb Weight: 283kg (624 lb)
  • Fuel Capacity: 13.6 litres, including 3.8-litre reserve
  • Colour: Red

Specifications

Engine
Engine Type Longitudinally mounted Four-stroke, OHV, 2 valves
Displacement 420 cc
Bore x Stroke 86.5 x 71.5 mm
Cylinders Single Cylinder
Engine Cooling Liquid Cooled
Fuel System PGM-FI fuel-injection
Chassis
Front Suspension Independent double-wishbone with hydraulic shocks
Front Travel 160 mm (6.3 in.)
Front Brake Type Dual hydraulic discs
Front Tires 24x8 - 12
Rear Travel 160 mm (6.3 in.)
Rear Suspension Independent double-wishbone with hydraulic shocks
Rear Brake Type Single hydraulic disc
Rear Tires 24x10 - 11
Dimensions/Capacities
Dry Weight (Curb Weight) 283kg (624 lb)
Fuel Capacity 13.6 l, including 3.8-l reserve
Ground Clearance 231 mm (9.1 in.)
Machine Dimensions (LxWxH) Length: 2,055 mm (80.9 in.); Width: 1,171 mm (46.1 in.)
Wheelbase 1,255 mm (49.4 in.)
Drive Train
Final Drive 2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential
Transmission Fully automatic five-speed with selectable ESP and reverse
General
Colors Red

Compare Models

 Print








Year 2009
Manufacturer Honda
Model TRX420FG Canadian Trail Edition
Style Utility
MSRP* $9,299.00
Chassis
Front Suspension Independent double-wishbone with hydraulic shocks
Front Travel 160 mm (6.3 in.)
Front Brake Type Dual hydraulic discs
Front Tires 24x8 - 12
Rear Suspension Independent double-wishbone with hydraulic shocks
Rear Travel 160 mm (6.3 in.)
Rear Brake Type Single hydraulic disc
Rear Tires 24x10 - 11
Frame
Dimensions/Capacities
Dry Weight (Curb Weight) 283kg (624 lb)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 13.6 l, including 3.8-l reserve
Ground Clearance 231 mm (9.1 in.)
Machine Dimensions (LxWxH) Length: 2,055 mm (80.9 in.); Width: 1,171 mm (46.1 in.)
Wheelbase 1,255 mm (49.4 in.)
Drive Train
Drive Train
Final Drive 2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential
Transmission Fully automatic five-speed with selectable ESP and reverse
Engine
Engine Type Longitudinally mounted Four-stroke, OHV, 2 valves
Displacement 420 cc
Bore x Stroke 86.5 x 71.5 mm
Cylinders Single Cylinder
Engine Cooling Liquid Cooled
Fuel System PGM-FI fuel-injection
Starting System
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Red
Warranty

Current Promotions

There are currently no promotions available for this product.
