$7,999.00

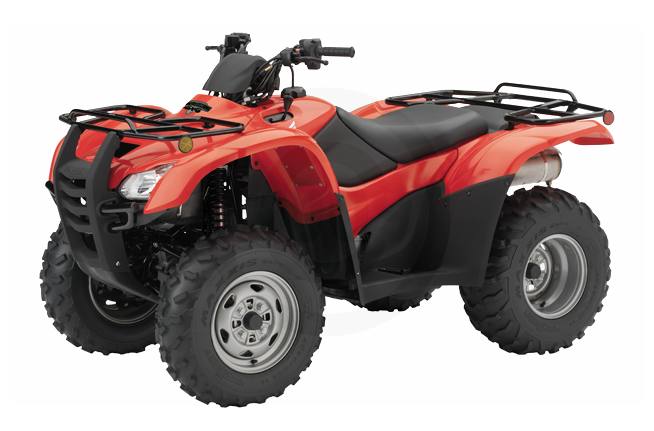

2009 Honda TRX420FM
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Red
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The Honda TRX420FM has an easy-to-handle, fun-to-ride character, plus plenty of performance for fun trail riding or chores around the farm or cottage. Its liquid-cooled engine is fuel-injected for consistent operation in the toughest conditions, and the engine and chassis design contribute to superior balance and light weight – you'll be amazed how easily you can ride over the most rugged terrain. Looking for more? The TRX420FM delivers with an easy-to-use 2WD/4WD shifter, front disc brakes with long-life pads and a special scraper system to prevent damage, and the option of NaturalGear™ camo bodywork.

    Engine/Drivetrain
    • Powerful 420 cc longitudinally mounted engine eliminates 90-degree power transfers and boasts exceptional horsepower and torque.
    • Overhead-valve design provides compact engine dimensions for improved ground clearance while maintaining a broad, easy-to-use powerband.
    • Keihin fuel-injection system provides crisp performance and ensures trouble-free operation in cold conditions and changing altitudes.
    • Rubber-cushion engine mounting and gear-driven counterbalancer reduce vibration.
    • Super-heavy-duty automatic clutch with a low rpm engagement point for excellent driveability and towing capability.
    • Five-speed transmission with Reverse includes an ultra-low First gear.
    • 4WD/2WD selector lever allows 4WD when needed for the tough stuff and 2WD when conditions permit.
    • Convenient electric starting, with optional recoil starter and an automatic internal-decompression system.
    • Washable foam air filter for easy maintenance and consistent performance.
    • Stainless-steel exhaust header and muffler for superior corrosion resistance.
    • Three-chamber muffler baffling uses no packing material that can blow out. Provides long-lasting performance.
    • Full transistor ignition with electronic advance for excellent performance and reliability.
    • Powerful 343-watt AC generator.
    • Large 7.2-litre airbox with reusable foam air filter provides more air to the engine for increased performance.
    Chassis/Suspension
    • Rugged frame and suspension provide an exceptional 165 mm (6.5 inches) of ground clearance.
    • Steering-mechanism design features light effort and a tight turning radius.
    • Independent double-wishbone front suspension uses premium shock absorbers to provide 160 mm (6.3 inches) of suspension travel for a plush, comfortable ride.
    • Steel swingarm and gas charged rear shock absorber provide 160 mm (6.3 inches) of suspension travel for superb comfort and compliance.
    • Tough, large-diameter 24x8-12 front, and wide 24x10-11 rear tires provide excellent ground clearance while maintaining precise handling.
    • Dual front hydraulic disc brakes and sealed mechanical rear drum brakes for strong stops.
    Additional Features
    • Engine design produces low emissions and meets EPA and California Air Resources Board (CARB) off-road emissions standards.
    • Optional waterproof accessory socket provides 12-volt, 10-amp power with a built-in temperature-type fuse.
    • Large cargo racks front and rear carry payloads of 30 kg (66 lb) and 60 kg (133 lb), respectively.
    • Heavy-duty trailer hitch with 385 kg (850 lb) towing capacity.
    • Large, lightweight plastic fuel tank with 13.3-litre capacity.
    • Snorkel-type air-intake system is specially designed to resist water.
    • Under-seat storage compartment allows access when rack is loaded.
    • Thickly padded seat provides excellent comfort.
    • Large fenders give excellent mud protection.
    • Twin-headlight system with 30-watt bulbs features multireflector lenses for optimal light distribution.
    • Combination LED stoplight and taillight.
    • Spark arrester/muffler designed for quiet operation without wool packing for long-lasting performance.
    • Constant-velocity-joint boot guards help prevent damage to boot covers.
    • Tough 12-amp-hour maintenance-free battery.
    • Durable, comfortable, easy-to-use controls.
    • Keyed ignition switch for added security.
    • Full-length synthetic lower skidplate with integrated front brush guard.
    • Easy-to-use parking brake.
    • Standard tool kit includes a tire-pressure gauge.
    • 1 year, transferable limited warranty.
    Specifications
    • Engine Type: Liquid-cooled longitudinally mounted single-cylinder four-stroke
    • Displacement: 420 cc
    • Bore & Stroke: 86.5 mm x 71.5 mm
    • Compression Ratio: 9.8:1
    • Valve Train: OHV, 2 valves
    • Fuel Delivery: PGM-FI fuel-injection
    • Transmission: Five-speed with automatic clutch, reverse and ultra-low first gear
    • Final Drive: 2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential
    • Front Suspension: Independent double-wishbone with hydraulic shocks; 160 mm (6.3 inches) travel
    • Rear Suspension: Swingarm with single hydraulic shock; 160 mm (6.3 inches) travel
    • Tires: 24x8 - 12 front; 24x10 - 11 rear
    • Brakes: Front dual 180 mm hydraulic discs; rear sealed mechanical drum
    • Length: 2,055 mm (80.9 inches)
    • Width: 1,172 mm (46.1 inches)
    • Ground Clearance: 165 mm (6.5 inches)
    • Seat Height: 822 mm (32.4 inches)
    • Wheelbase: 1,249 mm (49.2 inches)
    • Curb Weight: 266 kg (586 lb) including required fluids and full tank of gas - ready to ride
    • Fuel Capacity: 13.3 litres, including 2.6-litre reserve
    • Colour: Red, White

    Specifications

    Engine
    Engine Type Longitudinally mounted Four-stroke, OHV, 2 valves
    Displacement 420 cc
    Bore x Stroke 86.5 x 71.5 mm
    Cylinders Single Cylinder
    Engine Cooling Liquid Cooled
    Fuel System PGM-FI fuel-injection
    Starting System Electric Start, W/Recoil Auxiliary
    Chassis
    Front Suspension Independent double-wishbone with hydraulic shocks
    Front Travel 160 mm (6.3 in.)
    Front Brake Type Dual 180 mm hydraulic discs
    Front Tires 24x8 - 12
    Rear Suspension Swingarm with single hydraulic shock
    Rear Travel 160 mm (6.3 in.)
    Rear Brake Type Sealed mechanical drum
    Rear Tires 24x10 - 11
    Dimensions/Capacities
    Dry Weight (Curb Weight) 266 kg (586 lb)
    Fuel Capacity 13.3 l, including 2.6-l reserve
    Ground Clearance 165 mm (6.5 in.)
    Machine Dimensions (LxWxH) Length: 2,055 mm (80.9 in.); Width: 1,172 mm (46.1 in.)
    Wheelbase 1,249 mm (49.2 in.)
    Drive Train
    Final Drive 2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential
    Transmission Five-speed with automatic clutch, reverse and ultra-low first gear
    General
    Colors Red, White
    Warranty 1 Year Transferable Limited Warranty

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model TRX420FM
    Style Utility
    MSRP* $7,999.00
    Chassis
    Front Suspension Independent double-wishbone with hydraulic shocks
    Front Travel 160 mm (6.3 in.)
    Front Brake Type Dual 180 mm hydraulic discs
    Front Tires 24x8 - 12
    Rear Suspension Swingarm with single hydraulic shock
    Rear Travel 160 mm (6.3 in.)
    Rear Brake Type Sealed mechanical drum
    Rear Tires 24x10 - 11
    Frame
    Dimensions/Capacities
    Dry Weight (Curb Weight) 266 kg (586 lb)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 13.3 l, including 2.6-l reserve
    Ground Clearance 165 mm (6.5 in.)
    Machine Dimensions (LxWxH) Length: 2,055 mm (80.9 in.); Width: 1,172 mm (46.1 in.)
    Wheelbase 1,249 mm (49.2 in.)
    Drive Train
    Drive Train
    Final Drive 2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential
    Transmission Five-speed with automatic clutch, reverse and ultra-low first gear
    Engine
    Engine Type Longitudinally mounted Four-stroke, OHV, 2 valves
    Displacement 420 cc
    Bore x Stroke 86.5 x 71.5 mm
    Cylinders Single Cylinder
    Engine Cooling Liquid Cooled
    Fuel System PGM-FI fuel-injection
    Starting System Electric Start, W/Recoil Auxiliary
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Red, White
    Warranty 1 Year Transferable Limited Warranty

    Current Promotions

    There are currently no promotions available for this product.
