$13,699.00

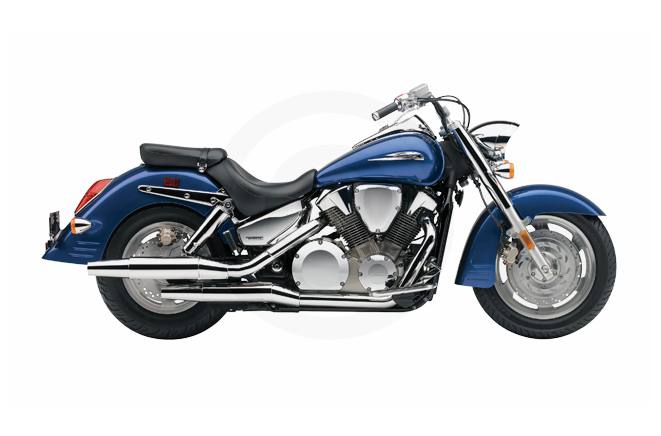

2009 Honda VTX1300R
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Think classic retro. Think a cool look all its own. The Honda VTX1300R is all that and a whole lot more. The bold style begins with deeply valanced fenders — they're old-school, but clean and shapely in a way that vintage fenders never could be. More classic styling? Check out the wide floorboards, the heel-and-toe shifter, and the long chrome pipes that just keep stretching back forever. Of course, under that bold retro look is the most modern of engineering, including a V-twin engine designed to produce loads of low-end grunt and an ear-pleasing rumble.

    Engine/Drivetrain
    • VTX1300R engine is a 1,312 cc liquid-cooled 52-degree V-twin that delivers strong low-end and midrange torque, with ample power for passing and relaxed cruising.
    • Powerplant design features a single-pin crankshaft to accentuate the VTX1300R engine's character.
    • Dual two-axis primary counterbalancers help to minimize harsh engine vibration without eliminating the powerful pulses transmitted by the VTX1300R's traditional V-twin design.
    • Each three-valve cylinder head features two 31 mm intake valves and a large 40 mm exhaust valve to produce optimum flow for the incoming air/fuel charge.
    • Simple-to-service screw-and-locknut valve-clearance adjusters.
    • Single 38 mm constant-velocity carburetor offers crisp throttle response.
    • Electronic control unit (ECU) provides 3-D ignition maps for each cylinder, creating ideal spark advance settings for superb rideability.
    • Coolant-heated carburetor improves rideability and ensures smooth operation in cold conditions.
    • Two sparkplugs per cylinder for efficient combustion at all engine speeds.
    • A unique dry-sump oil system utilizes a closed-crankcase design and places the oil tank inside the gearbox case. The result is a freer-revving engine for improved power and a lower engine height, allowing optimum rider ergonomics and a low 695 mm (27.4 inches) seat height.
    • Custom chromed two-into-two exhaust system produces a deep exhaust note.
    • Radiator with cooling fan maintains consistent engine temperature for optimum performance and long engine life.
    • Automatic cam-chain tensioners.
    • Reliable electric-starter system.
    • Sturdy clutch utilizes a rubber clutch-centre damper to ensure smooth and quiet shifting.
    • Five-speed transmission with carefully selected gear ratios for exciting roll-on performance.
    • Shaft final-drive system provides smooth, low-maintenance operation.
    • Driven-flange design at the final-drive gear minimizes final-drive noise and wear, and simplifies rear wheel installation.
    Chassis/Suspension
    • Massive tubular steel frame contains the engine's power and gives the VTX1300R a long, low, classic stance.
    • Large 41 mm extended front fork provides 129 mm (5.1 inches) of plush yet responsive travel.
    • Dual chromed rear shocks with five-position preload adjustment feature an advanced internal valve system for a comfortable ride.
    • Front disc brake features a twin-piston caliper with a large-diameter 336 mm stainless steel rotor. Combined with the rear single-piston caliper and 296 mm stainless steel rotor, the brakes provide excellent stopping power.
    • VTX1300R features retro-style cast wheels.
    • Large 140/80-17 front tire gives the VTX1300R a commanding profile.
    Additional Features
    • Deeply valanced front and rear fenders, chrome-hooded headlight, broad fuel tank with tank-mounted instruments, semi-swept handlebar and floorboards with heel-and-toe shifter create a classic retro style that sets the VTX1300R apart from the competition.
    • Specially designed tank-mounted chrome housing features a speedometer, odometer/A&B tripmeter, and indicator lights for the turn signals, high beam, neutral indicator, oil pressure and coolant temperature.
    • Electric speedometer with easy-to-read classic numerals uses an electronic speed sensor in the transmission, which eliminates the front-wheel-mounted speedometer cable. This contributes to a clean, uncluttered look.
    • Extensive chrome finishing of engine parts includes cylinder-head covers, valve inspection covers, airbox cover, left crankcase cover, clutch cover and left-rear engine cover.
    • Distinctive chrome-hooded headlight housing features a powerful, 55W/60W halogen bulb with a computer-designed multi-reflector for superb lighting.
    • Rider comfort is enhanced with comfortable ergonomics and a firmly padded saddle.
    • Handlebar design provides a comfortable, upright riding position.
    • Comfortably padded, large-diameter handgrips with polished aluminum handlebar switch housings and triple-clamp assembly.
    • 18-litre fuel tank for extended cruising and touring range.
    • Reliable 364W alternator.
    • Durable, maintenance-free 12-amp-hour battery.
    • Large under-seat tool tray.
    • Convenient push-to-cancel turn-signal switch.
    • 1 year, unlimited mileage, freely transferable warranty.
    Specifications
    • Engine Type: Liquid-cooled 52-degree V-twin
    • Displacement: 1,312 cc
    • Bore & Stroke: 89.5 mm x 104.3 mm
    • Compression Ratio: 9.2:1
    • Valve Train: Chain-driven SOHC, 3 valves per cylinder
    • Fuel Delivery: Single 38 mm CV carb
    • Transmission: Wide-ratio five-speed
    • Final Drive: Shaft
    • Front Suspension: 41 mm fork, 129 mm (5.1 inches) travel
    • Rear Suspension: Dual shocks with adjustable spring preload, 94 mm (3.7 inches) travel
    • Tires: 140/80 - 17 front; 170/80 - 15 rear
    • Brakes: Front single 336 mm disc with dual-piston caliper; rear single 296 mm disc with single-piston caliper
    • Seat Height: 695 mm (27.4 inches)
    • Wheelbase: 1,669 mm (65.7 inches)
    • Curb Weight: 322 kg (710 lb) including required fluids and full tank of gas - ready to ride
    • Fuel Capacity: 18 litres
    • Colour: Bright Blue Metallic, Nebulous Black Metallic

    Specifications

    Engine
    Engine Type 52-degree V-twin, Chain-driven SOHC, 3 valves per cylinder
    Displacement 1,312 cc
    Bore and Stroke 89.5 x 104.3 mm
    Cooling Liquid Cooled
    Compression Ratio 9.2:1
    Fuel System Single 38 mm CV carb
    Chassis
    Front Suspension 41 mm fork, 129 mm (5.1 in.) travel
    Front Brakes Single 336 mm disc with dual-piston caliper
    Front Tire 140/80 - 17
    Rear Suspension Dual shocks with adjustable spring preload, 94 mm (3.7 in.) travel
    Rear Brakes Single 296 mm disc with single-piston caliper
    Rear Tire 170/80 - 15
    Dimensions
    Dry Weight (Curb Weight) 322 kg (710 lbs)
    Fuel Capacity 18 l
    Wheelbase 1,669 mm (65.7 in.)
    Seat Height 695 mm (27.4 in.)
    Transmission
    Transmission Wide-ratio five-speed
    Final Drive Shaft
    General
    Colors Bright Blue Metallic, Nebulous Black Metallic
    Warranty 1 Year Unlimited Mileage, Freely Transferable Warranty

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model VTX1300R
    Style Cruiser
    MSRP* $12,199.00
    Chassis
    Front Suspension 41 mm fork, 129 mm (5.1 in.) travel
    Front Brakes Single 336 mm disc with dual-piston caliper
    Front Tire 140/80 - 17
    Rear Suspension Dual shocks with adjustable spring preload, 94 mm (3.7 in.) travel
    Rear Brakes Single 296 mm disc with single-piston caliper
    Rear Tire 170/80 - 15
    Dimensions
    Dry Weight (Curb Weight) 322 kg (710 lbs)
    Fuel Capacity 18 l
    Wheelbase 1,669 mm (65.7 in.)
    MPG
    Seat Height 695 mm (27.4 in.)
    Trail
    Rake
    Engine
    Engine Type 52-degree V-twin, Chain-driven SOHC, 3 valves per cylinder
    Displacement 1,312 cc
    Bore and Stroke 89.5 x 104.3 mm
    Cooling Liquid Cooled
    Compression Ratio 9.2:1
    Fuel System Single 38 mm CV carb
    Ignition
    General
    Speedometer
    Tachometer
    Odometer
    Colors Bright Blue Metallic, Nebulous Black Metallic
    Warranty 1 Year Unlimited Mileage, Freely Transferable Warranty
    Transmission
    Transmission Wide-ratio five-speed
    Final Drive Shaft
